Sedona Kit Home!

Starting at $20,000

308 Sq. Ft. Open Concept

Discover the perfect blend of simplicity and function with the Sedona Kit Home—a thoughtfully designed, compact modular solution tailored for versatility. Whether you're creating a serene guest suite, a stylish studio, or a minimalist getaway, the Sedona offers efficient living without compromise. Built for comfort, sustainability, and style.

Schedule An Appointment

Downloadable PDF

Buy Now

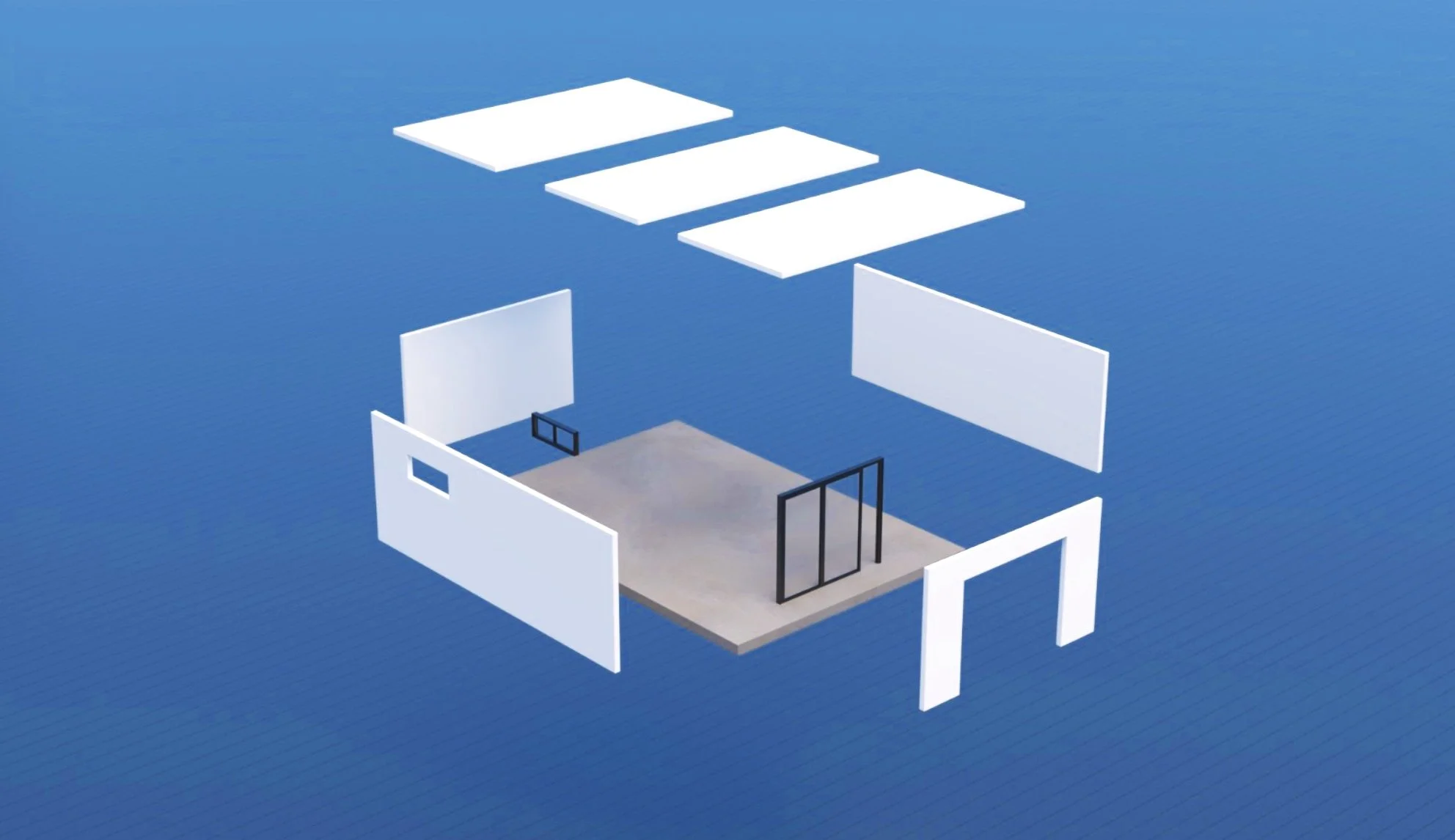

Sedona 3D plan image for kit drawings.png


Specifications

Price Starts at: $20,000
Total Area: 308 sq. ft
Dimensions: 14ft x 22ft
Roof Dimensions: 16ft x 26ft

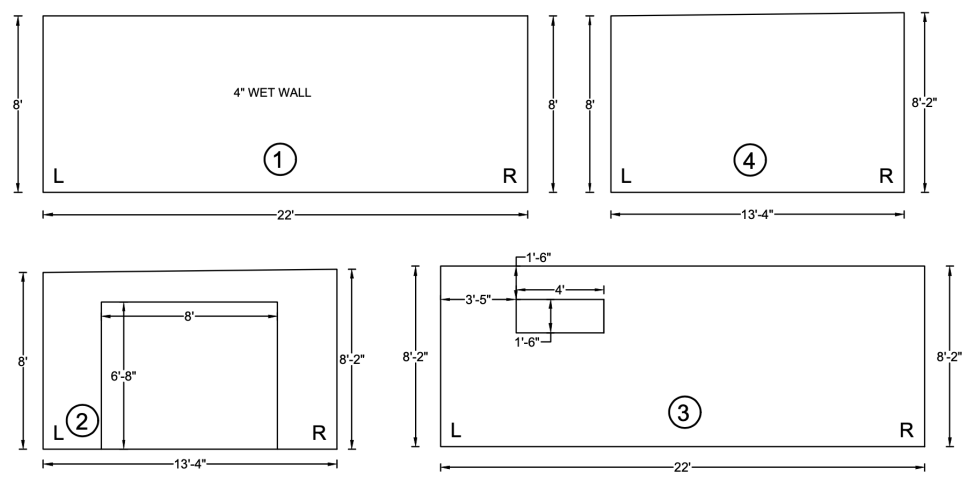

Total # of Panels: 6
Roof Panels: 2
Wall Panels: 4
Shipping Details: $3.50 to $5.50
a mile from Chattanooga, TN.
Lead Time: 3 months
Financing: Available

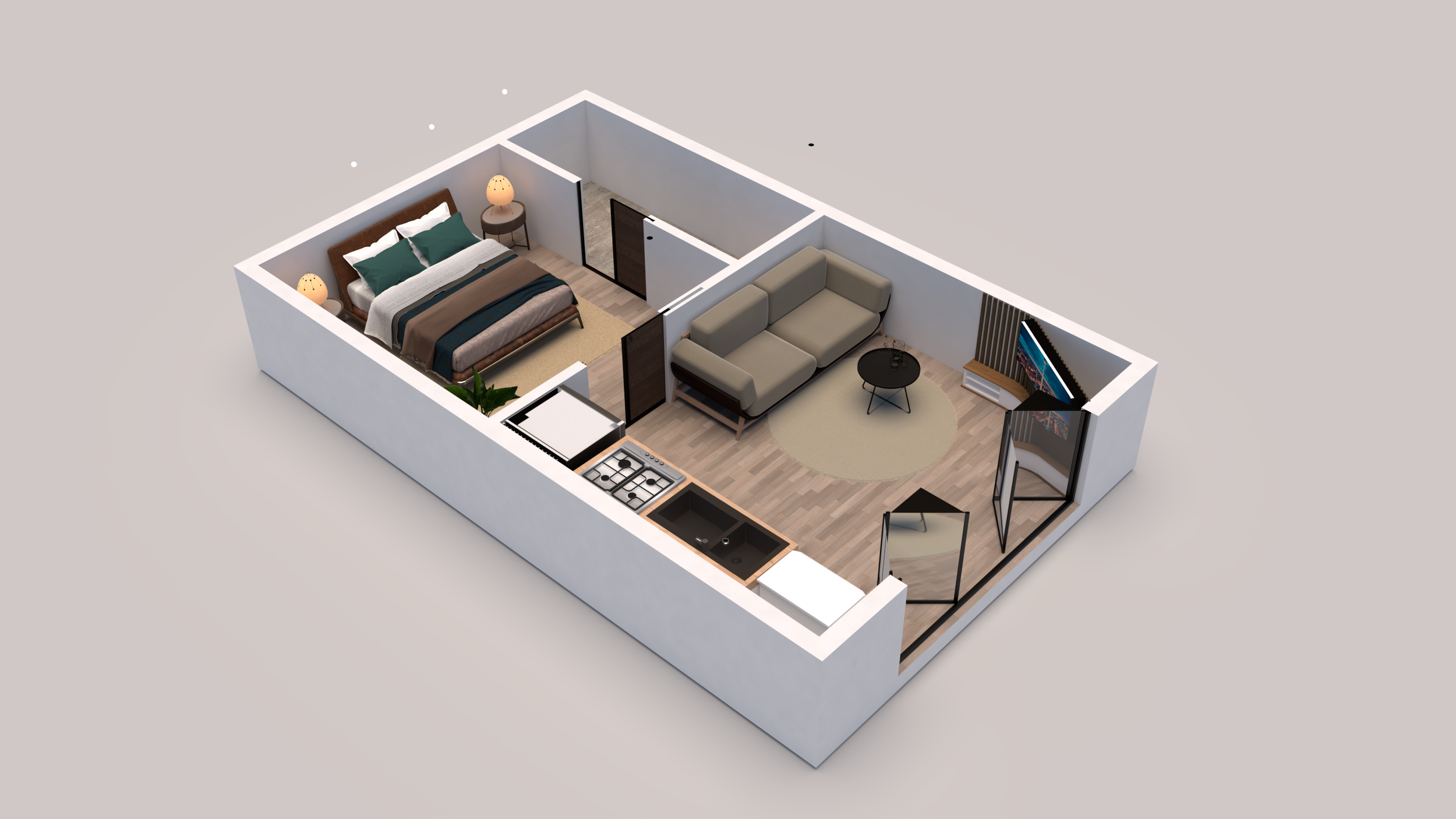

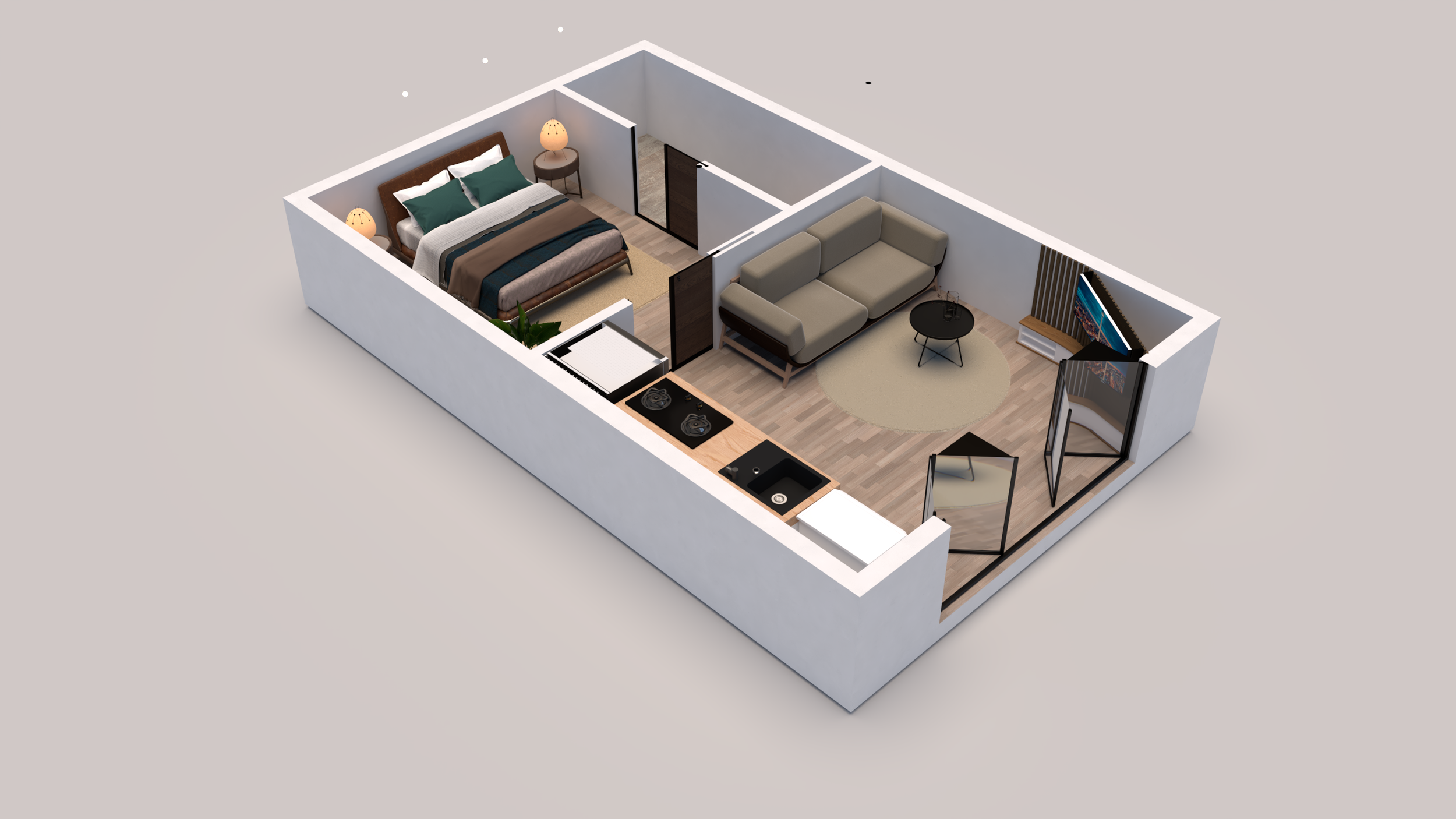

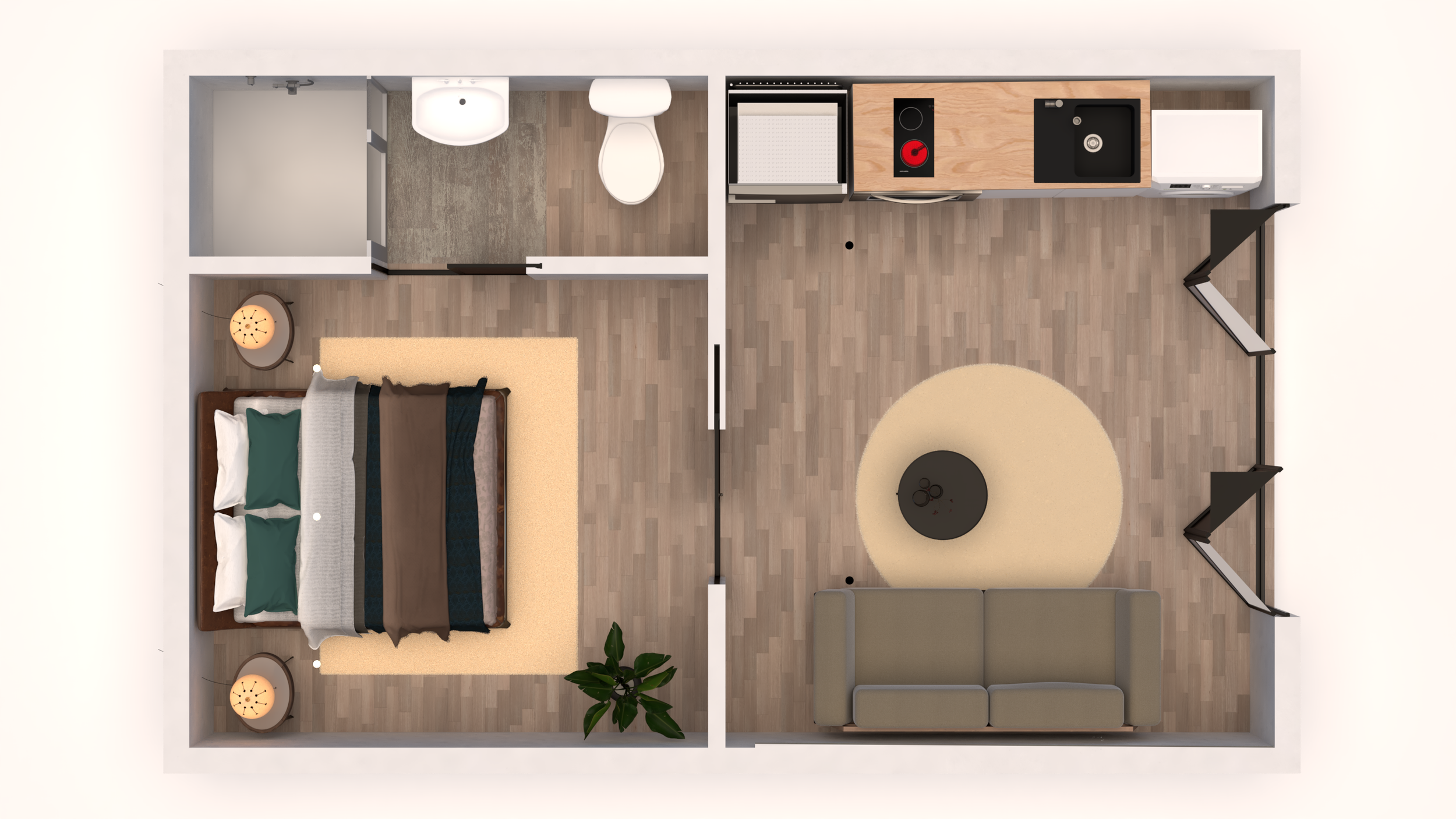

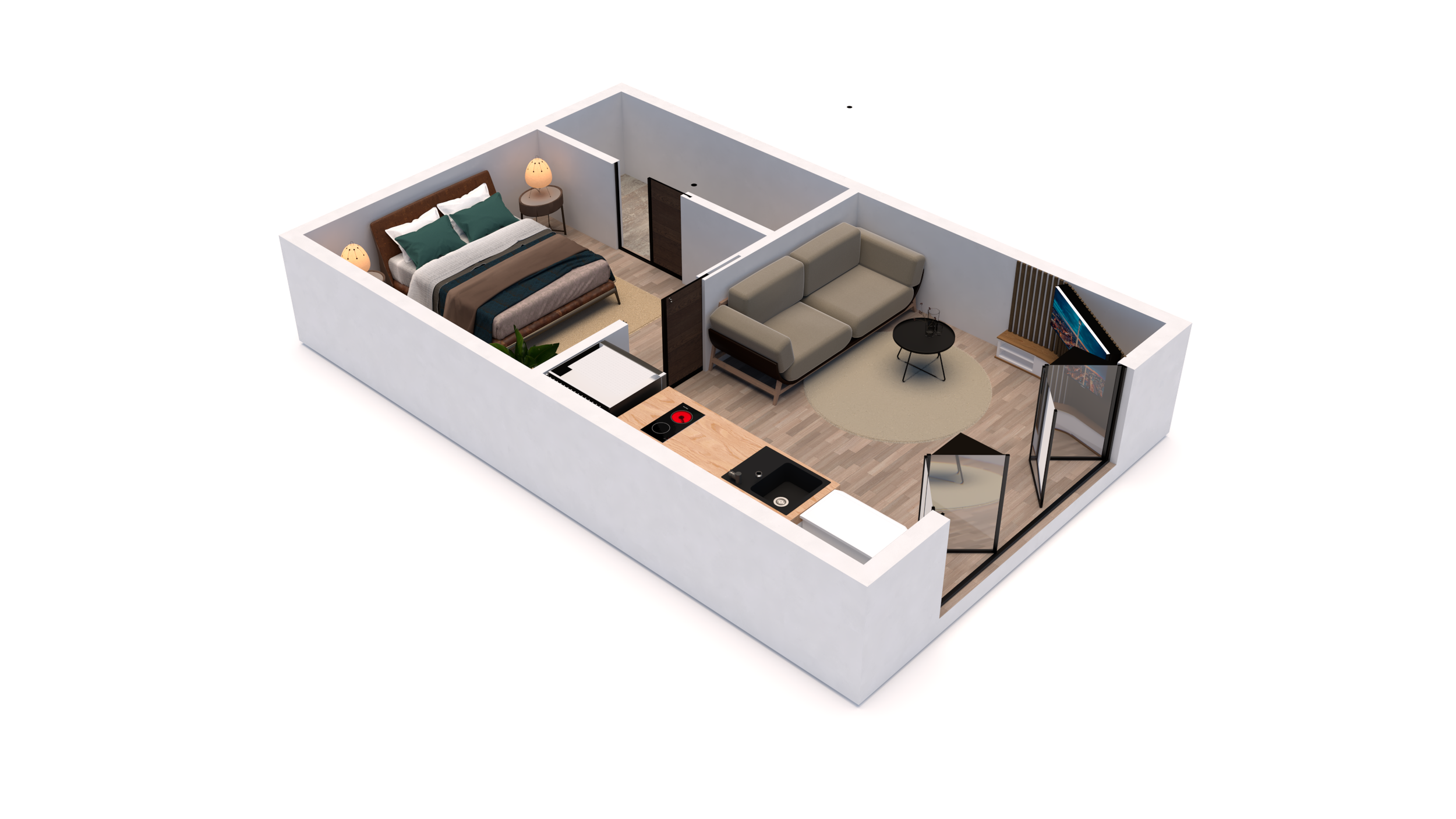

Floor Plan

Open Concept Plan

DIY 1 Bed, 1 Bath ADU

DIY Finished Units

Yoga Studio

ADU - 1 Bed, 1 Bath

Office

    Material List — What’s Included



          #
          Material
          Size
          Weight
          Quantity
          Web Link



          1
          Simpson Strongtie VTCR Clips
          18 gauge

          100
          VICR Single-Sided
Valley Truss Clip
Simpson Strong-Tie


          2
          Simpson Strongtie SD9112 Screws
          #9 x 1-1/2"

          500
          Strong-Drive® SD Connector Screw
Simpson Strong-Tie


          3
          1-5/8” Type S Screws
          #6 x 1-5/8"

          500
          Grabber Construction Products
Drywall Screw


          4
          Studs
          2” x 4” x 10’

          40
          Douglas Fir-Larch Framing Stud


          5
          Bottom Plates
          2” x 4” x 10’

          6
          Pressure Treated Lumber


          6
          Top Plates
          2” x 4” x 10’

          12
          Douglas Fir-Larch Framing Stud


          7
          Blocking
          2” x 4” x 10’

          4
          Douglas Fir-Larch Framing Stud


          8
          Simpson Strongtie A35 Framing Angles


          30
          A35 Framing Angle — ZMAX® Finish
Simpson Strong-Tie


          9
          5/8” Drywall
          4’ x 10’

          20
          USG Sheetrock® Brand Firecode® X Panels


          10
          Joint Tape
          2” x 250’

          2
          FibaTape® Mold-X10™
Self-Adhesive Drywall Tape


          11
          Joint Compound (Mud)
          5 gal
          62.5 lbs
          2
          USG All Purpose Joint Compound


          12
          Corner Bead
          8’

          8
          Vinyl Drywall Corner Bead


          13
          Paint
          1 gal

          5
          Benjamin Moore Regal® Select Interior Paint


          14
          Primer
          1 gal

          2
          KILZ 2® All-Purpose Interior/Exterior Primer


          15
          Caulk
          10.1 oz

          6
          DAP® ALEX FLEX® Premium Molding & Trim Sealant
