Jupiter Kit - Endless Possibilities.
Starting at $30,000
320 Sq. Ft. Open Concept or 1 Bed 1 Bath
Experience the perfect blend of intimacy and efficiency with The Jupiter, a 320-square-foot retreat that celebrates minimalist living. This modern oasis optimizes every inch for functionality and aesthetic appeal, offering a smart layout that maximizes space and comfort. The open-concept design seamlessly integrates the bedroom into the overall ambiance, while innovative solutions replace the traditional bathroom, allowing for a customizable living experience. Jupiter is a testament to the art of compact living, where luxury and style are found in every detail.

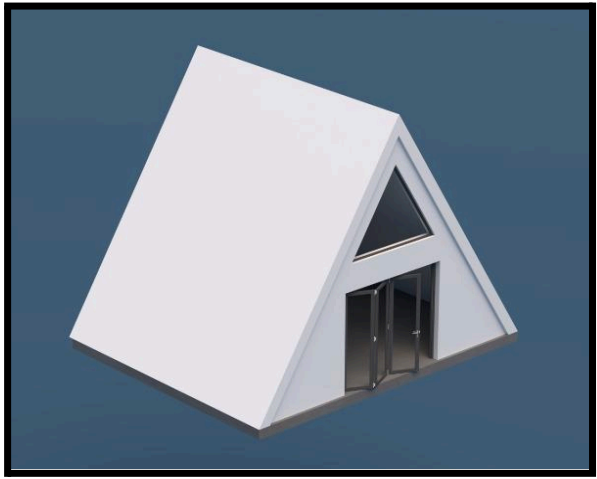

Specifications
Price Starts at: $30,000
Floor Area: 320 sq. ft
Dimensions: 16 ft x 20 ft
Roof Dimensions: 16 ft x 20 ft
Bedrooms: 0
Bathrooms: 0
Windows: 2 Rectangular & 1 Triangle
Doors: 1 TriFold
Total # of Panels: 10
Roof Panels: 0
Wall Panels: 10
Shipping Details: $3.50 to $12.50
a mile from Chattanooga, TN.
Lead Time: 5 months
Financing: Available

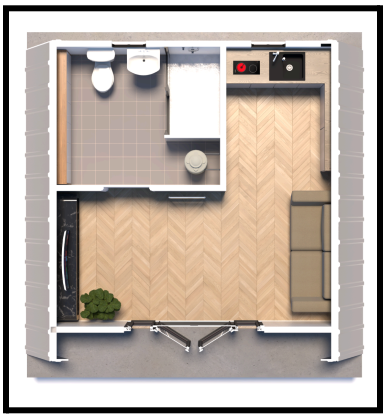

Floor Plan
DIY Finished Units
Material List — What’s Included
| # | Material | Size | Weight | Quantity | Web Link |
|---|---|---|---|---|---|
| 1 | Simpson Strongtie VTCR Clips | 18 gauge | 100 | VICR Single-Sided Valley Truss Clip Simpson Strong-Tie | |
| 2 | Simpson Strongtie SD9112 Screws | #9 x 1-1/2" | 500 | Strong-Drive® SD Connector Screw Simpson Strong-Tie | |
| 3 | 1-5/8” Type S Screws | #6 x 1-5/8" | 500 | Grabber Construction Products Drywall Screw | |
| 4 | Studs | 2” x 4” x 10’ | 40 | Douglas Fir-Larch Framing Stud | |
| 5 | Bottom Plates | 2” x 4” x 10’ | 6 | Pressure Treated Lumber | |
| 6 | Top Plates | 2” x 4” x 10’ | 12 | Douglas Fir-Larch Framing Stud | |
| 7 | Blocking | 2” x 4” x 10’ | 4 | Douglas Fir-Larch Framing Stud | |
| 8 | Simpson Strongtie A35 Framing Angles | 30 | A35 Framing Angle — ZMAX® Finish Simpson Strong-Tie | ||
| 9 | 5/8” Drywall | 4’ x 10’ | 20 | USG Sheetrock® Brand Firecode® X Panels | |
| 10 | Joint Tape | 2” x 250’ | 2 | FibaTape® Mold-X10™ Self-Adhesive Drywall Tape | |
| 11 | Joint Compound (Mud) | 5 gal | 62.5 lbs | 2 | USG All Purpose Joint Compound |
| 12 | Corner Bead | 8’ | 8 | Vinyl Drywall Corner Bead | |
| 13 | Paint | 1 gal | 5 | Benjamin Moore Regal® Select Interior Paint | |
| 14 | Primer | 1 gal | 2 | KILZ 2® All-Purpose Interior/Exterior Primer | |
| 15 | Caulk | 10.1 oz | 6 | DAP® ALEX FLEX® Premium Molding & Trim Sealant |
What’s Needed
Monolithic concrete pad (?ft x ?ft)
Building Permits
Exterior Finishes
Interior Finishes
What’s Recommended
General Contactor

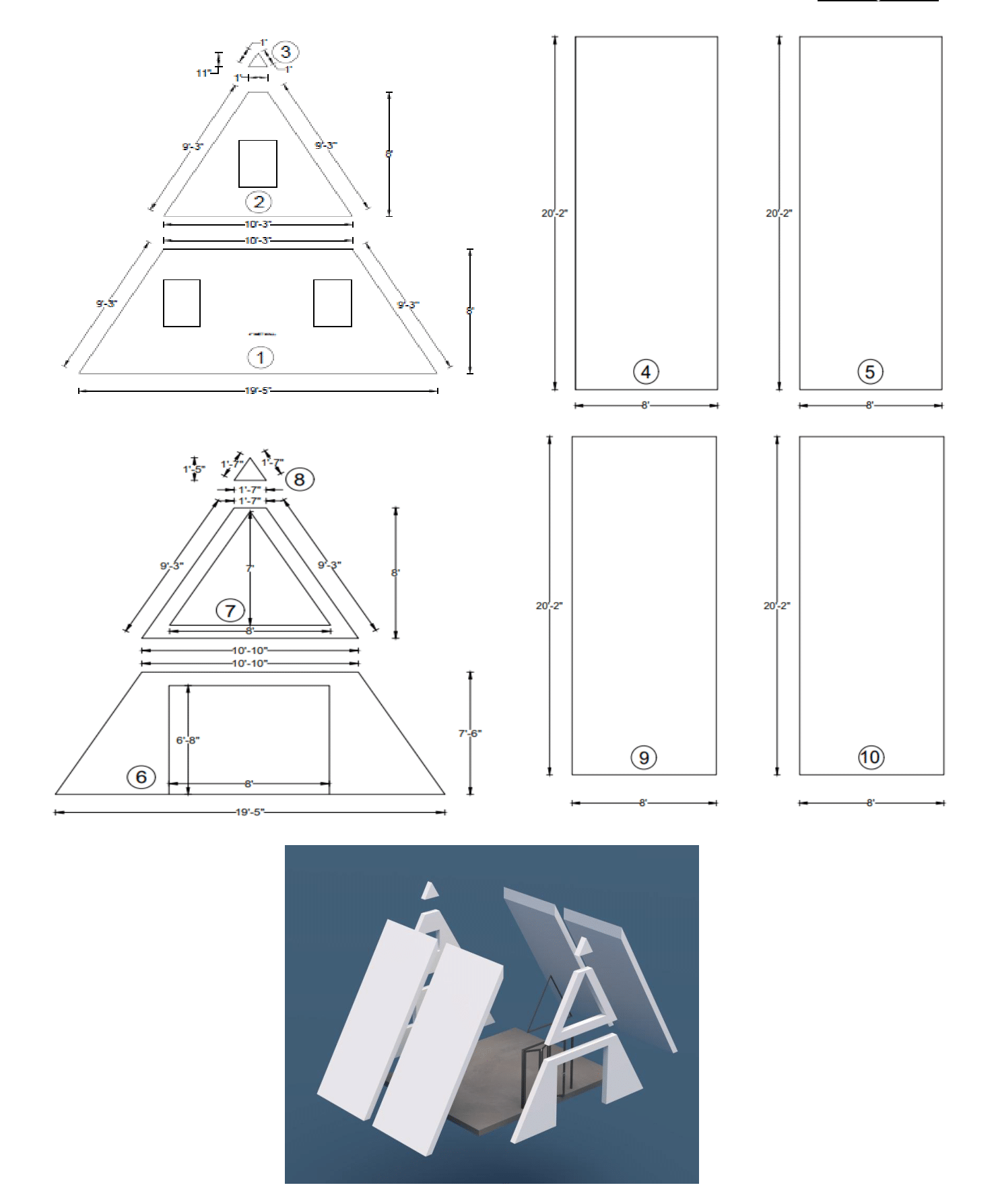

Panel Breakdown

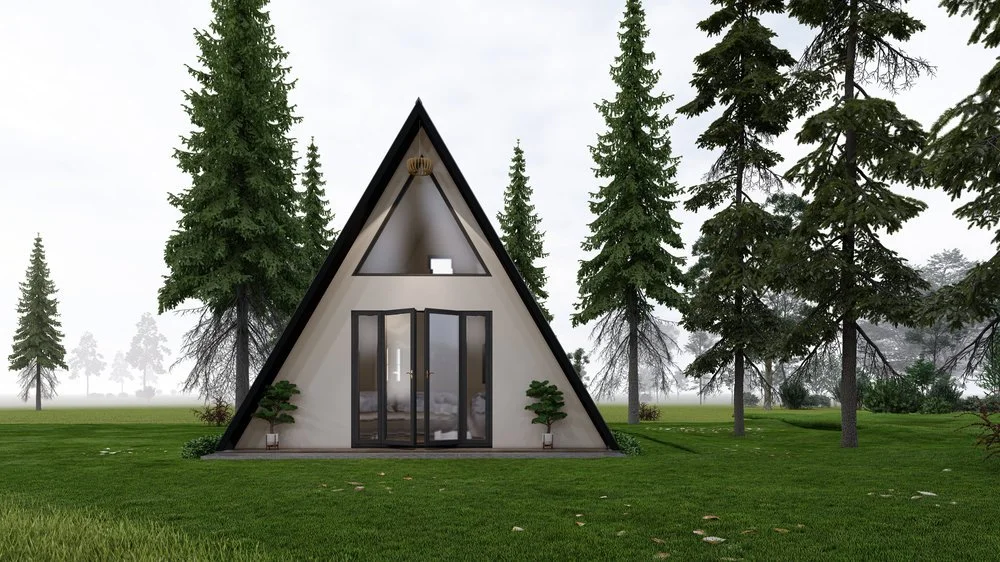

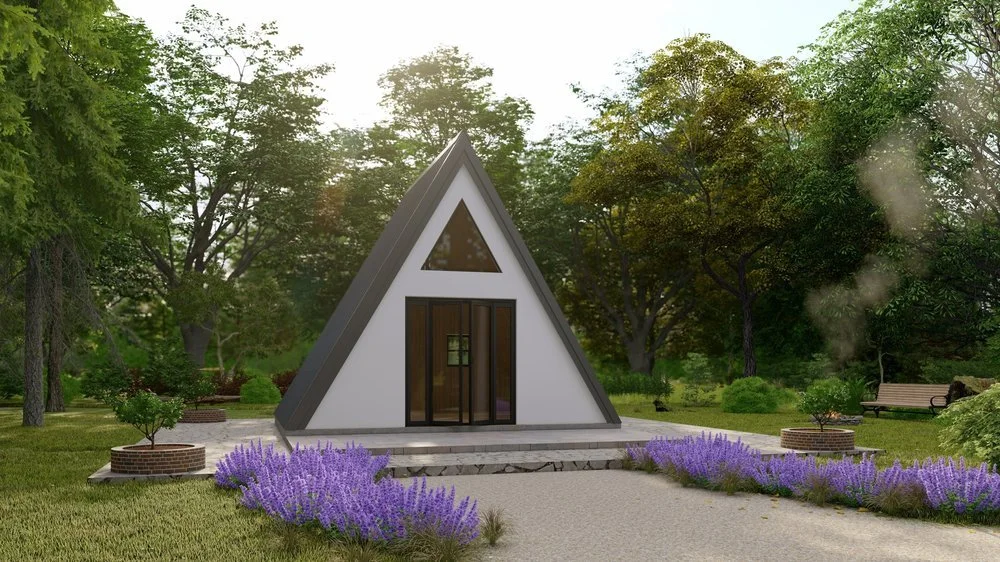

Exterior DIY Rendering

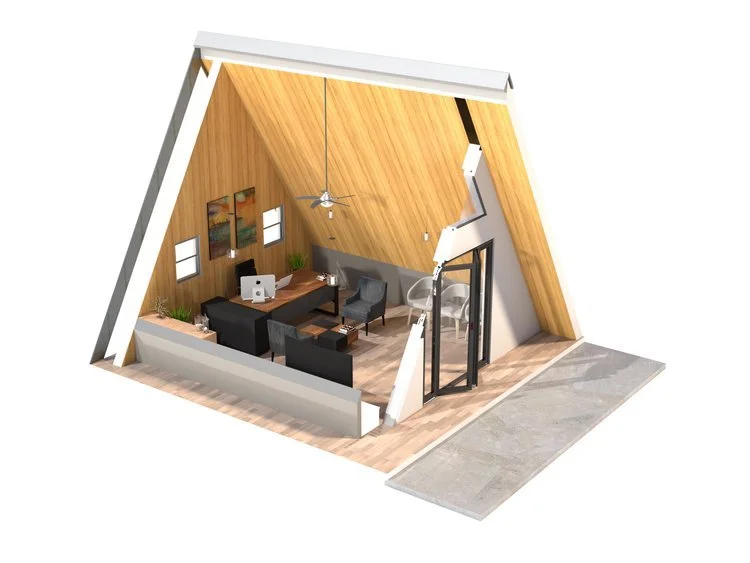

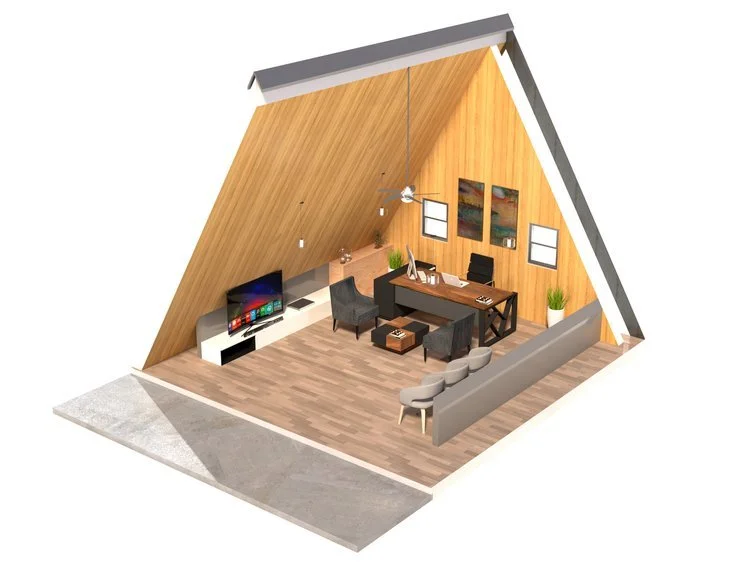

Common Designs
Yoga Studio / Open Space / Office
Adaptable Layout
Nationwide Delivery
<3-Day Install
Eco-Friendly
Energy Efficient
